E-FLite Blade mSR

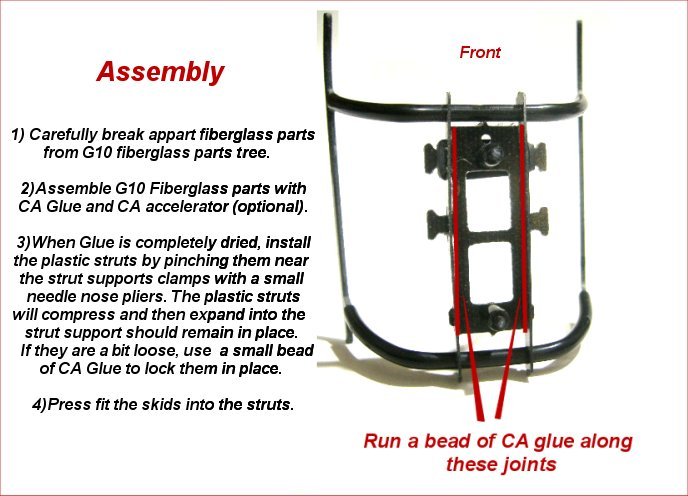

Note that on earlier kits, you may need to
slightly enlarge the screw mounting holes on the G10
battery support plates with the tip of an Exacto knife or
a small reamer, if the mounting holes do not allow the
screws to pass through with ease.

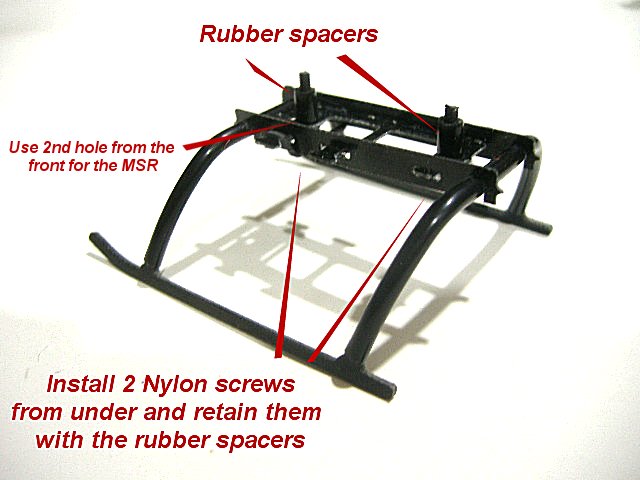

The nylon screw rubber retainer-spacers are
best installed by gently pushing them with your finger
nails in small increments until the screw passes through.
Once in place, they remain in place. Then simply screw the
assembly into the stock frame using a flat head small
screwdriver that fits the head of the screw well, so it
doesn't slip, while screwing them in place.
Nylon screws were selected to maintain low weight and
allow disassembly from frame, if required. They fit snug
because the screws are round and very close to the opening
dimension of the frame sockets which are oval, so the
screws will thread into them with a bit of tension, as
felt while screwing the screws into the LG sockets of the
stock frame, this is desirable so the screws hold the
assembly snug but not overly tight.
-
E-FLite Blade
S300, mCX
The
MIA TUFF™ LG-mSR, LG will also
work with the E-Flite S300 Coaxial and original mCX Helicopters.
Note the mounting spacing for the LG sockets is different on these
than for the mSR, therefore a second front hole is provided on the
battery plate. Align the mounting holes per the particular
helicopter.
-
