Blade 120 SR Helicopter with Stock LG.


 The 120 is a nice helicopter but looks a bit funky with the stock LG, it is also "narrow-footprint" and this hinders easier takeoffs and landings.




Blade 120 SR Fitted with MIA "A" Style LG

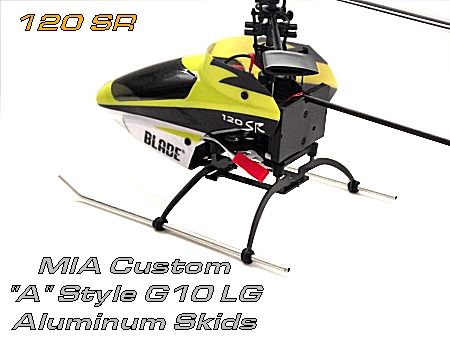

A more practical and elegant LG Option

\

Note: The MIA "A" Shape LG, is not just for aesthetical purposes, it has a mechanical advantage of providing a more solid mechanical structure while allowing the LG struts to be designed lightweight and allowing the skids to be locked in place with a bit of friction. However you can make the installation of the skids to struts more permanent by using a bit of Hot Melt Glue at the strut to skid O-ring joints to lock them in place. Note also that you can use CA glue but Hot Melt glue is preferable if you think you will need to replace the aluminum skids often.

Note also that we are supplying aluminum skids based on customer request to have a more elegant skids on their helicopters, and although MIA favors the G10 or molded nylon skids, as we used and offer on some of our other MIA LG KITS, this option is there for you to consider based also on your personal preference.

Have you ever wondered why bridges are made of thin triangular sections? Same approach here with our "A" shape design. LIGHTWEIGHT STRUCTURAL RIGIDITY.


bullet

More robust

bullet

Greater footprint and sleek lower profile

bullet

More stable

bullet

Greater protection for the helicopter

bullet

Universal mounting for various battery shapes and sizes

bullet

Practical tail rotor and boom stress relieving protection

bullet

Elegant LG aluminum skids can be easily trimmed by user to shorter length, if desired.





The MIA LG Kit - G10 LG Parts Tree



Has all the fiberglass parts to make up the wider footprint and lower profile LG, battery plate and a couple "bonus fins" for user to use or not use as desired.

The fins were not intended to be part of the LG, but since we had the room on the plate we thought we  include them at no extra charge. They are shorter than the fin that is included with the MIA Edge, Phantom and Falcon canopies, but they are free and made from G10.

Please Read the section MIA KIT INTRO if you are not already familiar with
the assembly of MIA kits.

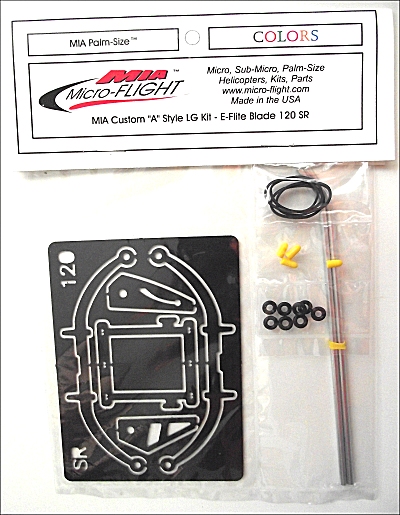

Kit Parts

Contents:
 • Wide Footprint "A" Style LG Struts
 • Aluminum Skid, Rubber Holders
 • Battery Mounting Sleeve, Rubber Straps
 • Canopy, Fin, Basic Trim Decals

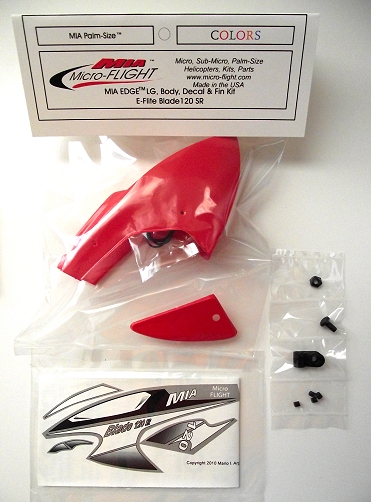

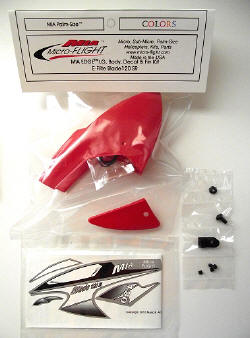

MIA Edge, Phantom ,Falcon Canopies

Please Read the section MIA Decals if you are not already familiar with
the application of MIA Vinyl Decals.

Kit Parts

Contents:
 •  Canopy, Fin, Decals
 •  Injection Molded Hardware






MIA Upgraded Blade 120 SR In Action!
